The UAE - A Proud Nation Shaping Tomorrow
Farmex envisions sustainable, efficient industrial cooling through innovation. As a proud Emirati brand, we lead with eco-friendly, high-performance solutions for a smarter future.
Our Vision
Farmex envisions sustainable, efficient industrial cooling through innovation. As a proud Emirati brand, we lead with eco-friendly, high-performance solutions for a smarter future.
Our Mission
We deliver energy-efficient, durable cooling systems using smart technology. Our goal: cost-effective, adaptable solutions for industrial and commercial needs while minimizing environmental impact.
Our Process
We innovate, rigorously test, and optimize designs for reliability. Using sustainable materials and smart engineering, we ensure long-lasting, high-performance cooling solutions.

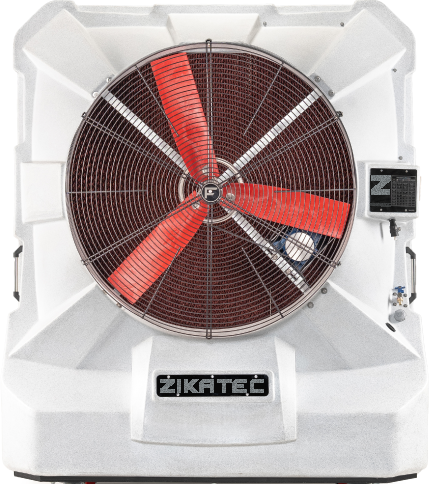

Eco Series
A Fixed Economic Solution for Industrial Cooling
The Eco Series is an ideal choice for businesses seeking stable cooling with lower energy consumption and affordable costs. Featuring simple design, reliable performance, and cost-effectiveness, this series is a practical solution for ventilating large industrial spaces.
Key Features:
- Cost-effective – Designed for businesses aiming to reduce expenses without compromising performance.
- Fixed outdoor installation – Best suited for large industrial halls.
- 7090 economical cellulose pad – Provides optimal cooling at lower cost.
- Economical water pump – Budget-friendly design with efficient operation.
- Low energy consumption – Reduces long-term operational costs.

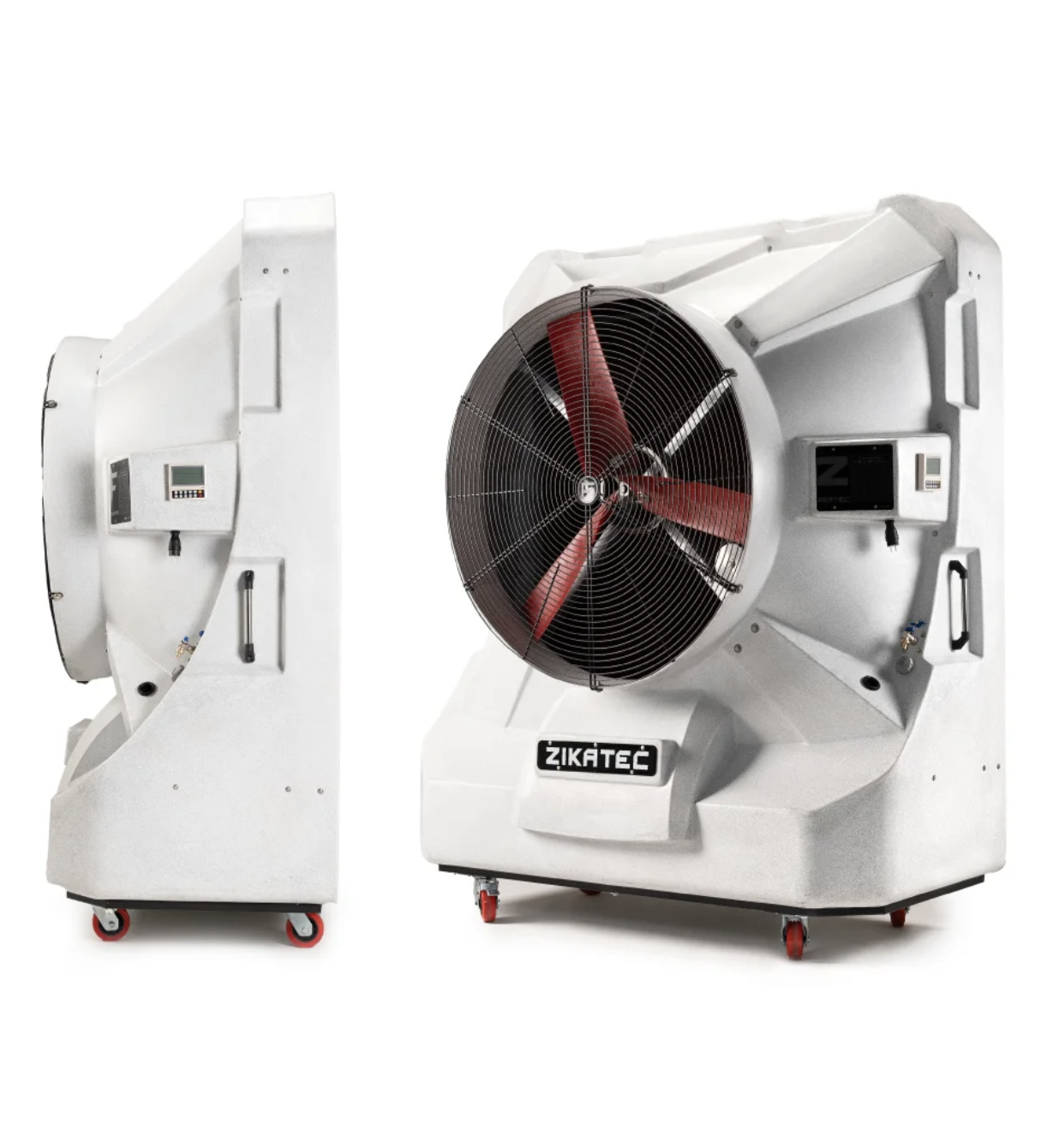

ProPlus Series
Smart, Mobile, and Cost-Efficient Cooling
With advanced design and intelligent features, brings comfort and efficiency to a new level. Its mobility, variable fan speed control, and smart management system make it a powerful and flexible solution for cooling workshops, halls, and commercial spaces.
Key Features:
- Effective and economical cooling – High performance with energy-efficient operation.
- Premium-grade cooling media– Delivers maximum cooling and evaporation performance.
- Easy mobility – Allows for flexible ventilation in industrial and commercial settings.
- Pentax pump (Italy) – Powerful and consistent water distribution.
- Motogen three-phase induction motor – High power and durability.
- Durable polymer body with lifetime warranty – Rustproof and UV-resistant.
- Central control board and inverter – For fan speed control and electricity savings.
- Fan motor and pump safety relays – Enhanced safety in industrial environments.

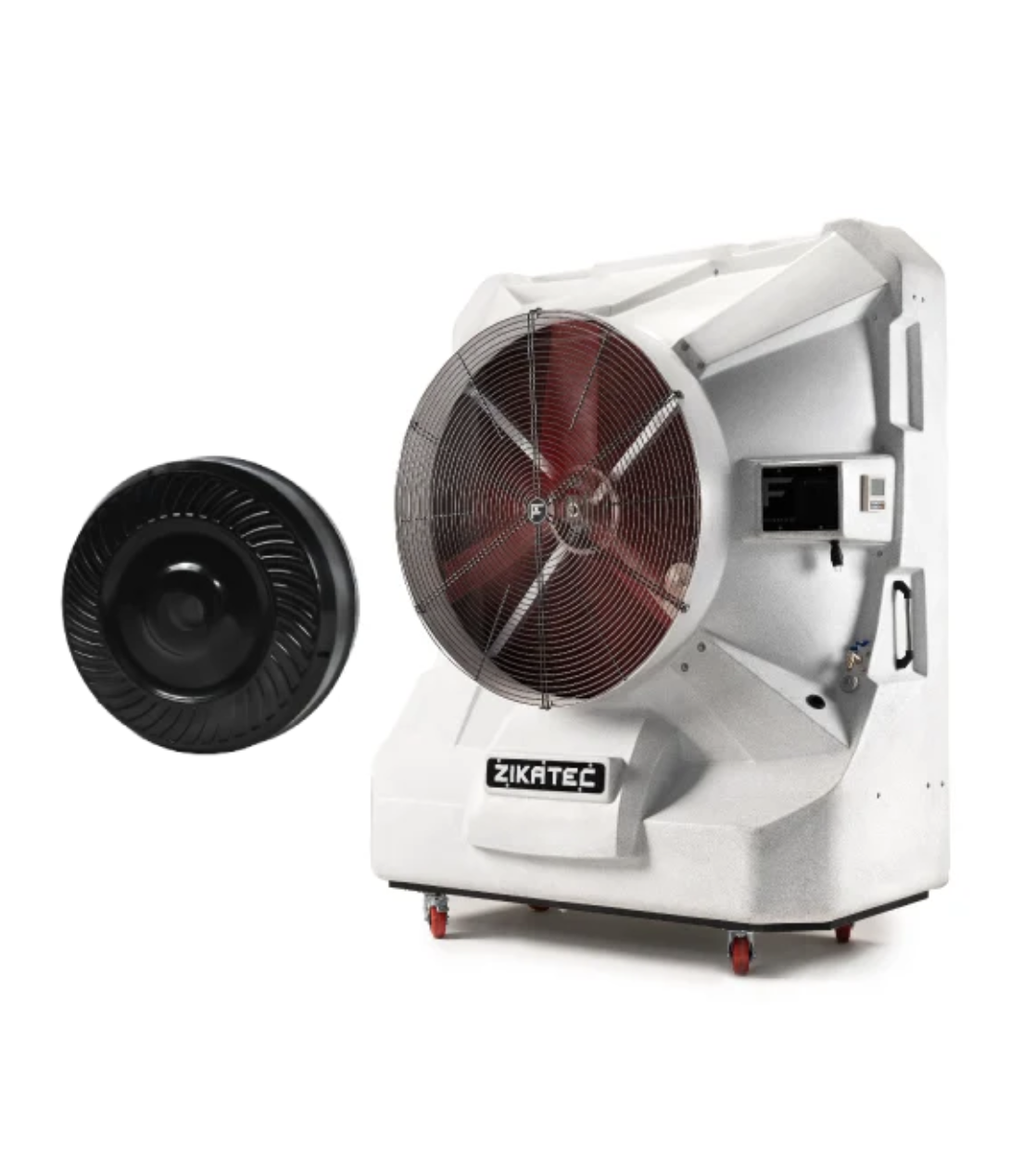

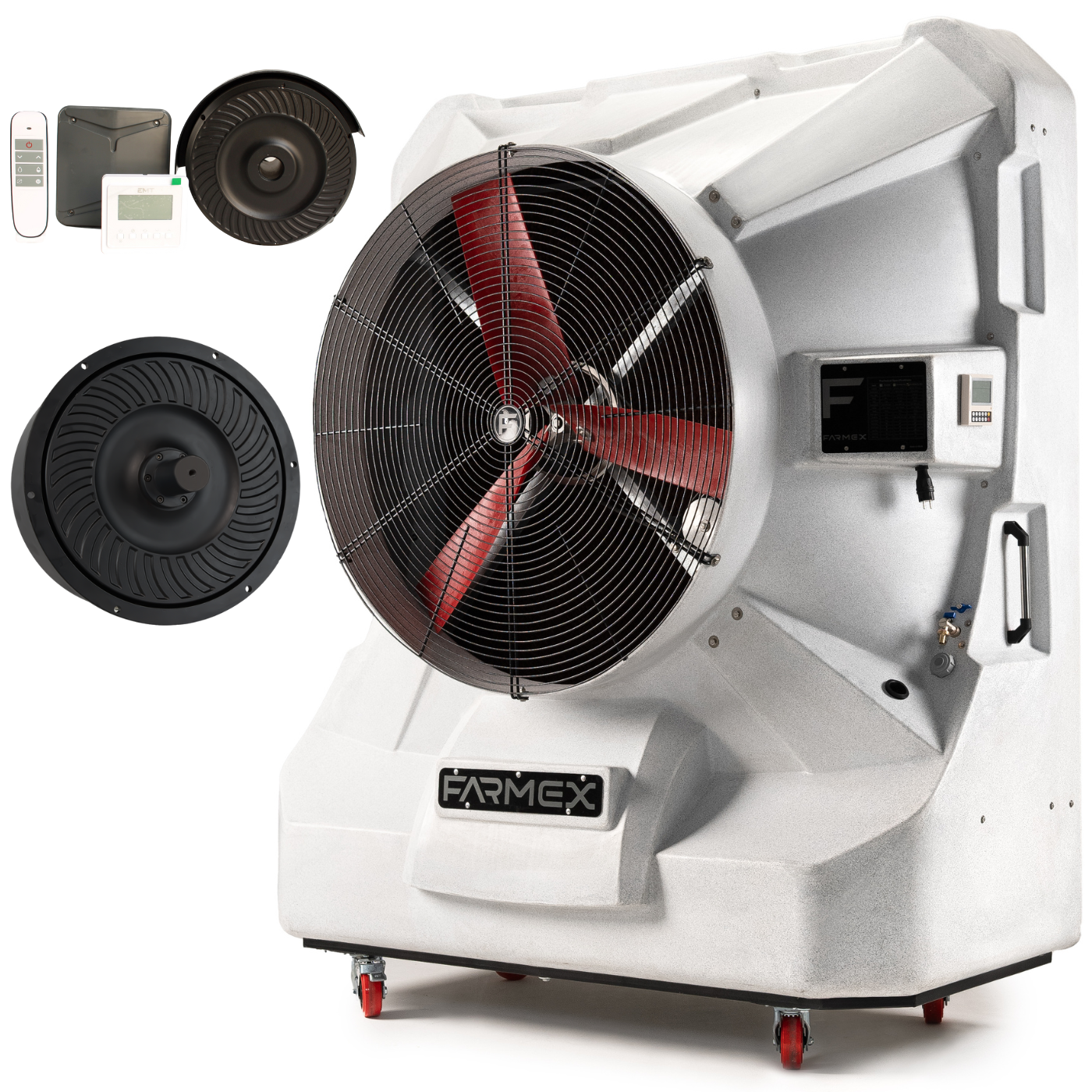

Optima Series
Maximum Cooling, Minimum Energy Use
Utilizing an advanced BLDC motor and direct-drive power system, the Optima series ensures silent operation with extremely low power consumption, making it ideal for reducing energy costs and maximizing cooling efficiency in industrial and open environments.
Key Features:
- Advanced BLDC motor – Ultra-efficient, silent, and long-lasting.
- Premium-grade cooling media– Delivers maximum cooling and evaporation performance.
- Pentax pump (Italy) – Powerful and consistent water distribution.
- Direct-drive power transmission – Minimizes energy loss and enhances performance.
- Durable polymer body with lifetime warranty – Weather-resistant and anti-corrosion.
- Smart water discharge and level sensor – Optimized water use and durability.
- Fan motor and pump safety relays – Prevents damage and ensures longevity.
- Smart fan speed control – Automatically adjusts based on ambient temperature.
- Portable and adaptable – Easy to move for various environments.

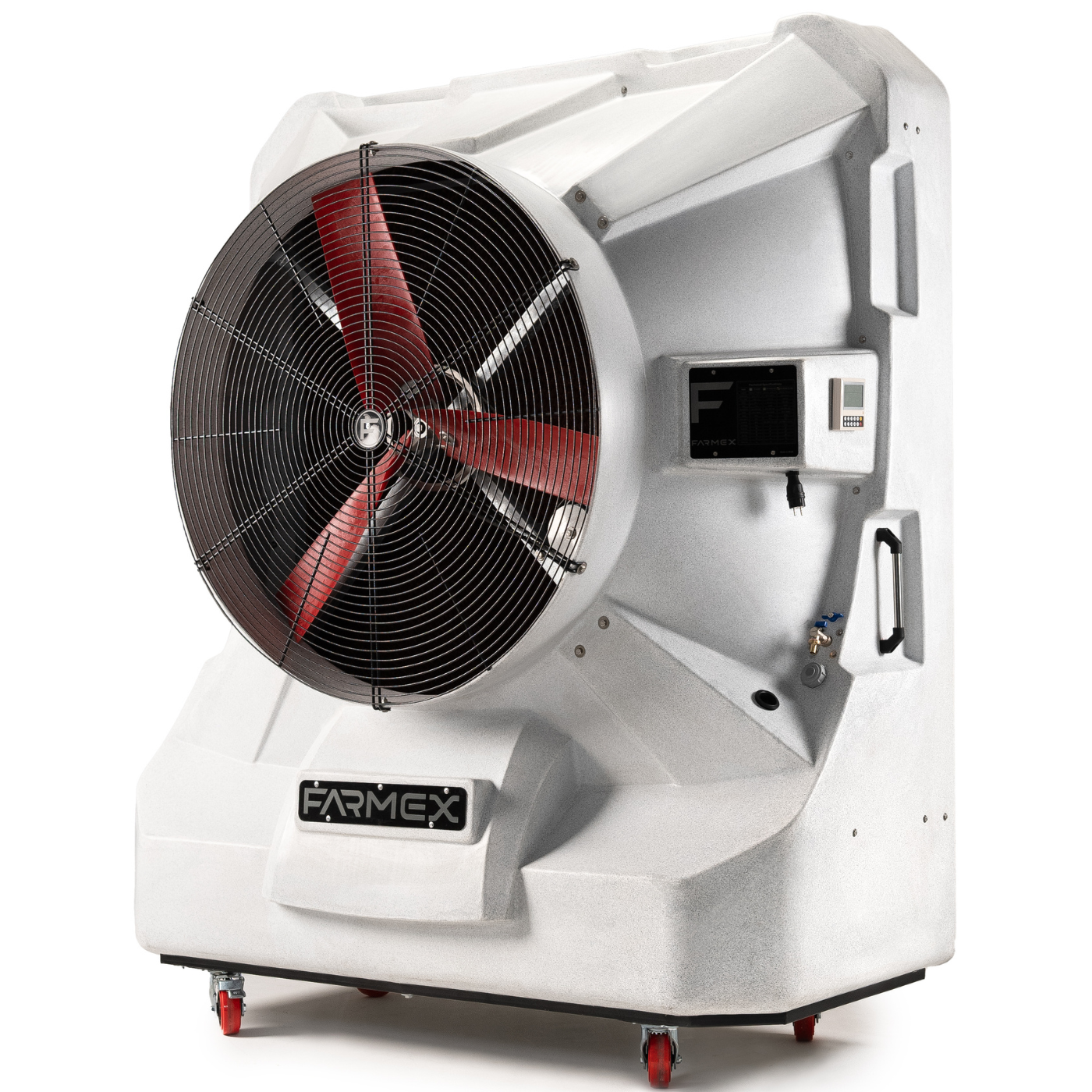

Initial Setup

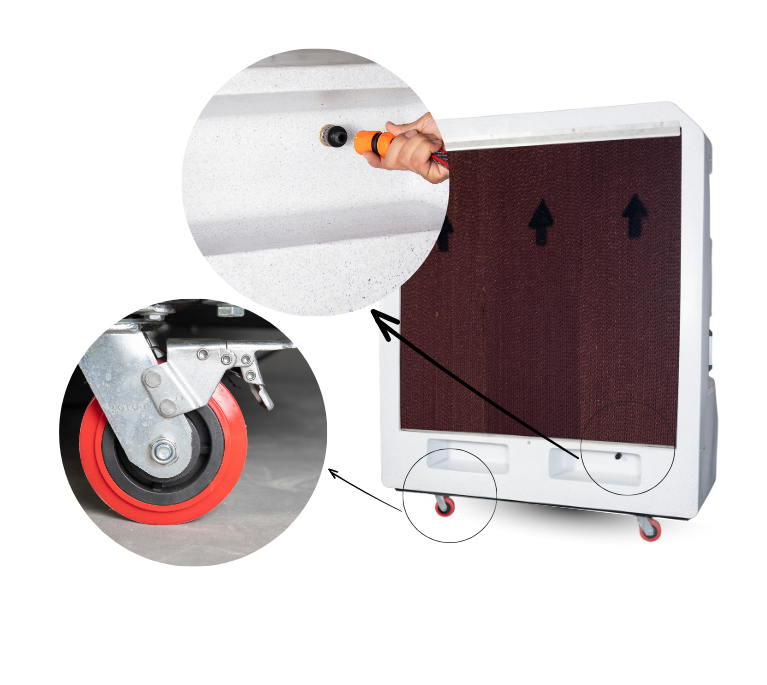

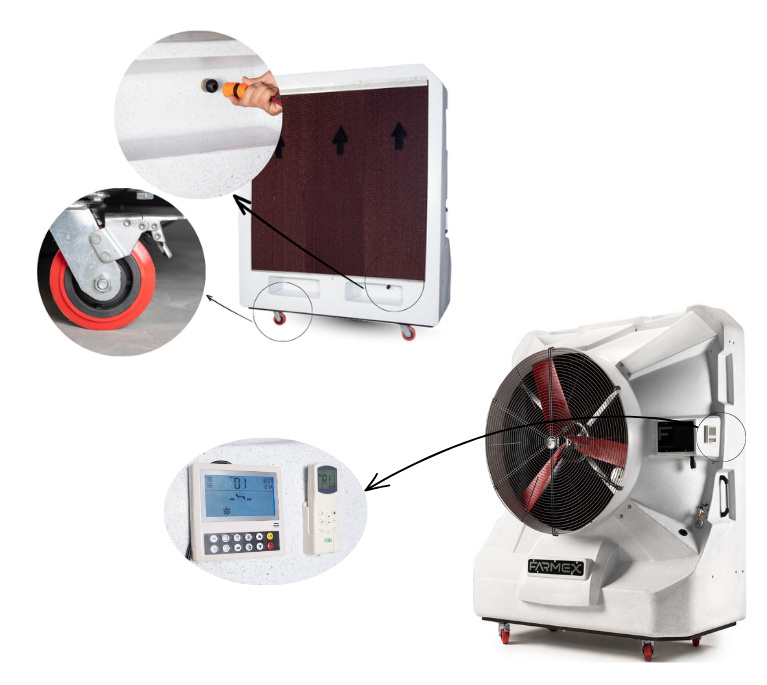

1- Open the cooler's packaging and place it in a suitable location.
2- Install the water hose at the back of the cooler
3- Lock the wheels to prevent movement when the cooler is turned on.
4- Remove the control panel from the included accessories.
5- Connect the panel to the socket on the left side of the cooler and mount it on the designated frame.
6-Plug the cooler into a power outlet.7- Connect the water hose and fill the color with water.8- Turn on the cooler using the control panel.
Note: Wait for one minute to allow the water pump to wet the cooling pads. The fan will start automatically afterward.
1- Open the cooler's packaging and place it in a suitable location.
2- Install the water hose at the back of the cooler
3- Lock the wheels to prevent movement when the cooler is turned on.
4- Remove the control panel from the included accessories.
5- Connect the panel to the socket on the left side of the cooler and mount it on the designated frame.
6-Plug the cooler into a power outlet.7- Connect the water hose and fill the color with water.8- Turn on the cooler using the control panel.
Note: Wait for one minute to allow the water pump to wet the cooling pads. The fan will start automatically afterward.

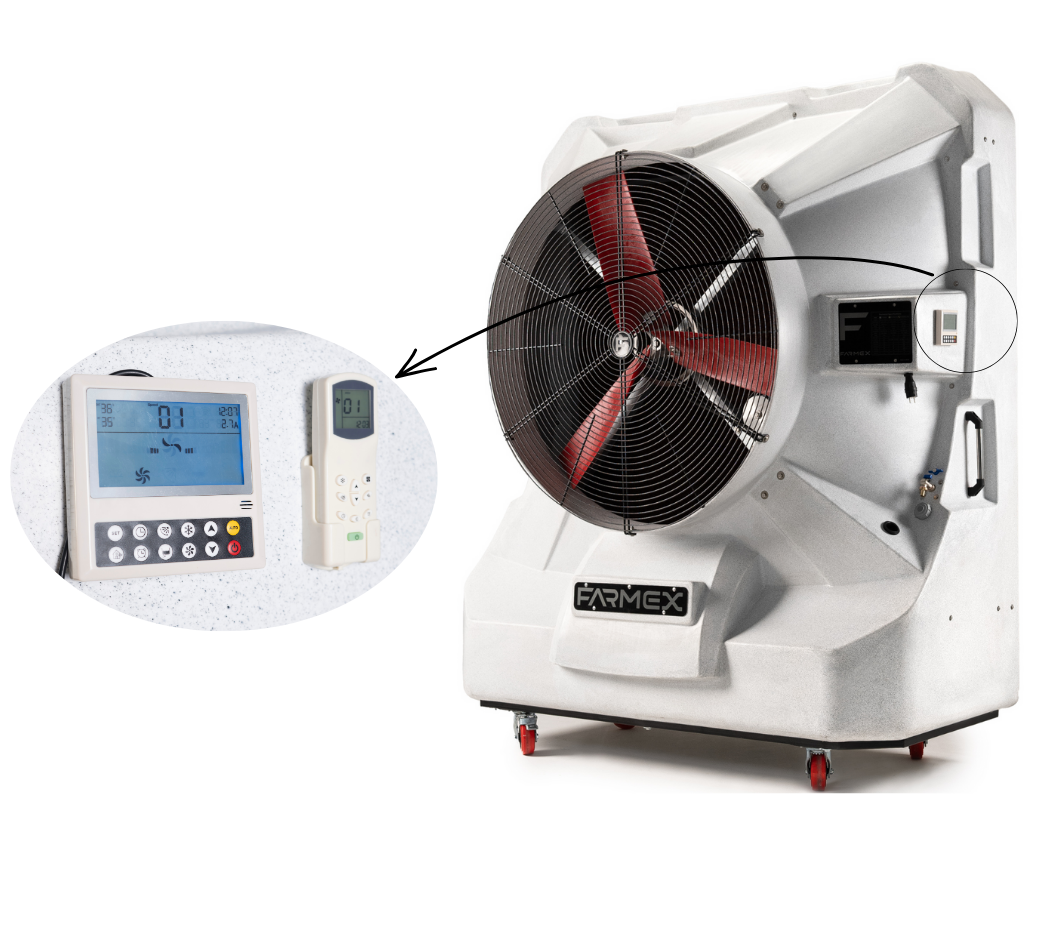

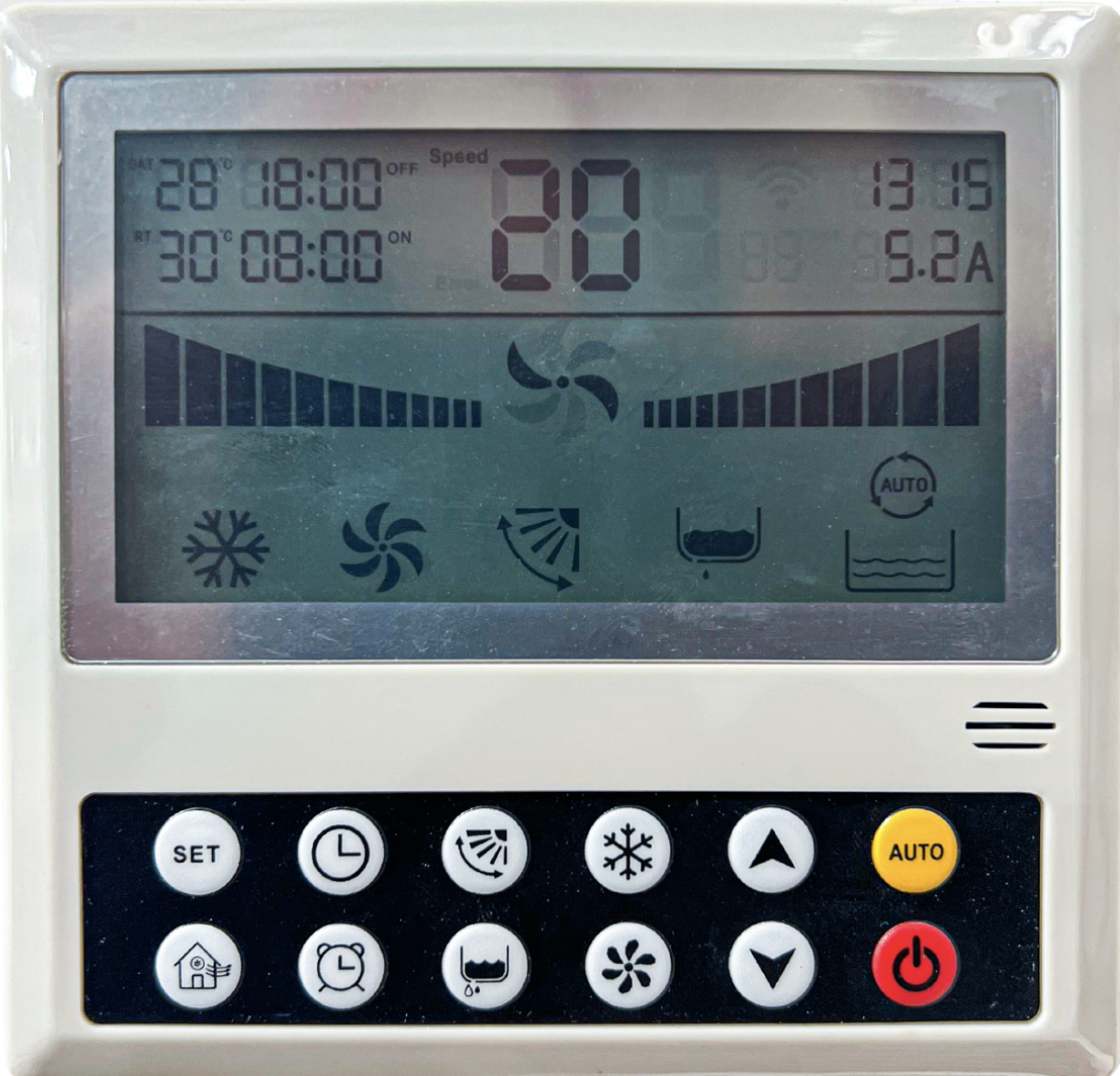

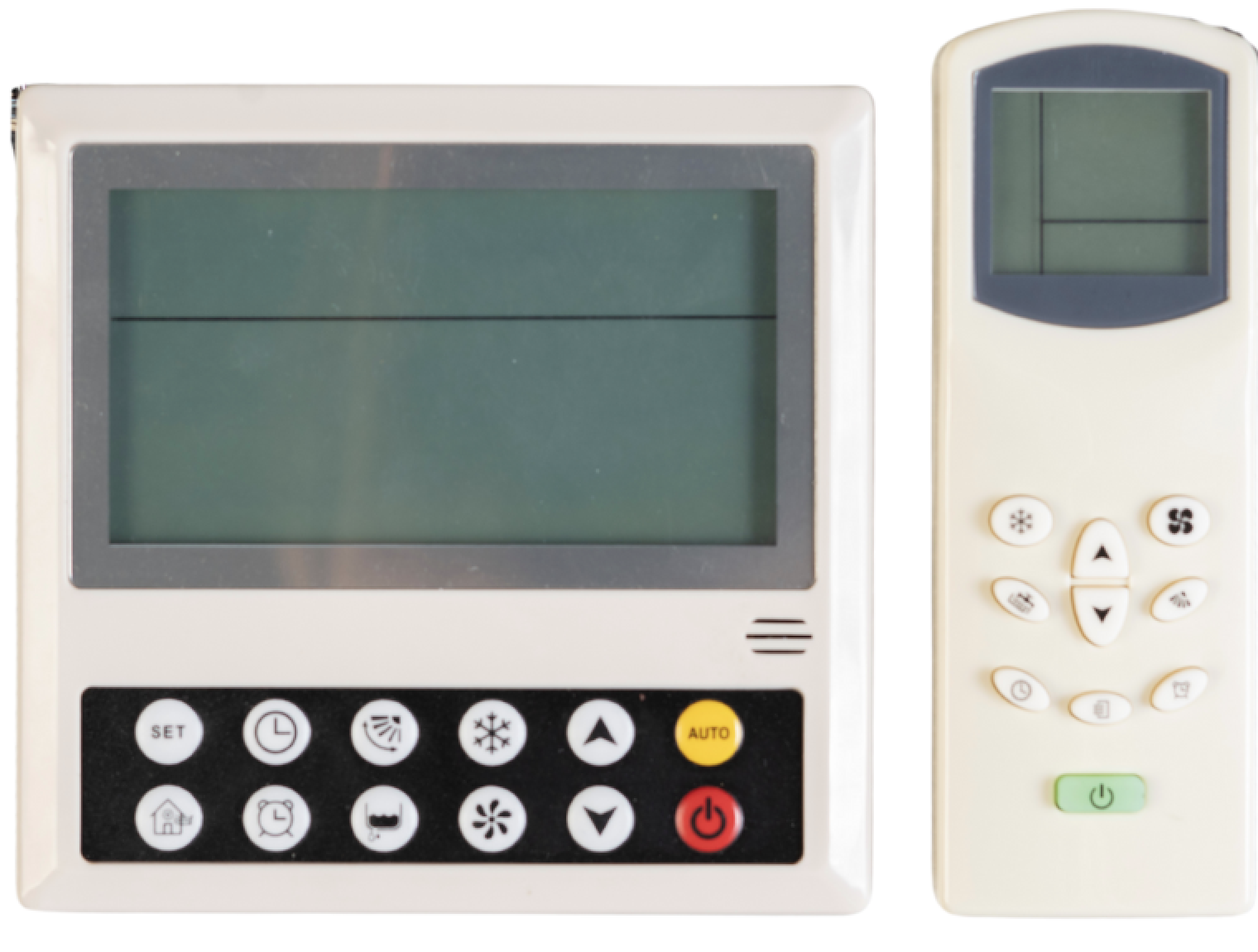

Control Panel Functions
1-Optimal Water Level2-Low Water Level3-Pump Status If the icon is missing, the pump is in active. If blinking, there is insufficient water.4-Fan Status5-Outdoor Temperature6- Indoor Temperature7-Airflow Speed8- OutputCurrent (Amperes)9- Device Clock10- Operating Timer
Important Display Indicators
1- PowerOn/Off Press to turn the cooler on or off.
2- Fan Speed Adjustment Use these controls to adjust the fans peedandairflow intensity.
3- Fan-Only Mode Use this function if you need the fan to operate without the water pump.
4- Cool Mode If the fan was running alone and you now need additional cooling, activate this function to engage the water pump.
5- Device Clock Set the cooler's clock to match local time.
6-Operating Timer Set a specific operating schedule for the cooler.
7- Reverse Mode When activated, the fan rotates in reverse, turning the cooler in to an exhaust fan that expels in door air outside.
1- PowerOn/Off Press to turn the cooler on or off.
2- Fan Speed Adjustment Use these controls to adjust the fans peedandairflow intensity.
3- Fan-Only Mode Use this function if you need the fan to operate without the water pump.
4- Cool Mode If the fan was running alone and you now need additional cooling, activate this function to engage the water pump.
5- Device Clock Set the cooler's clock to match local time.
6-Operating Timer Set a specific operating schedule for the cooler.
7- Reverse Mode When activated, the fan rotates in reverse, turning the cooler in to an exhaust fan that expels in door air outside.

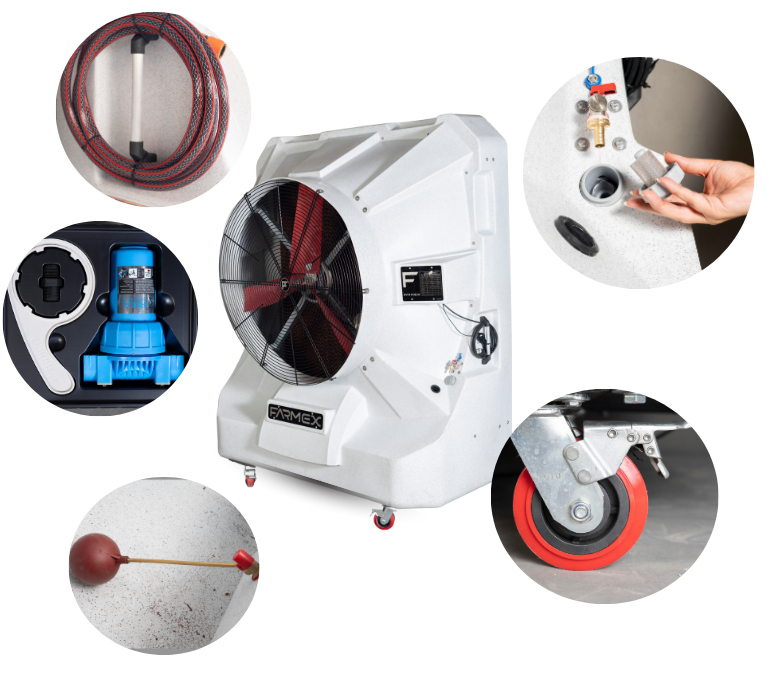

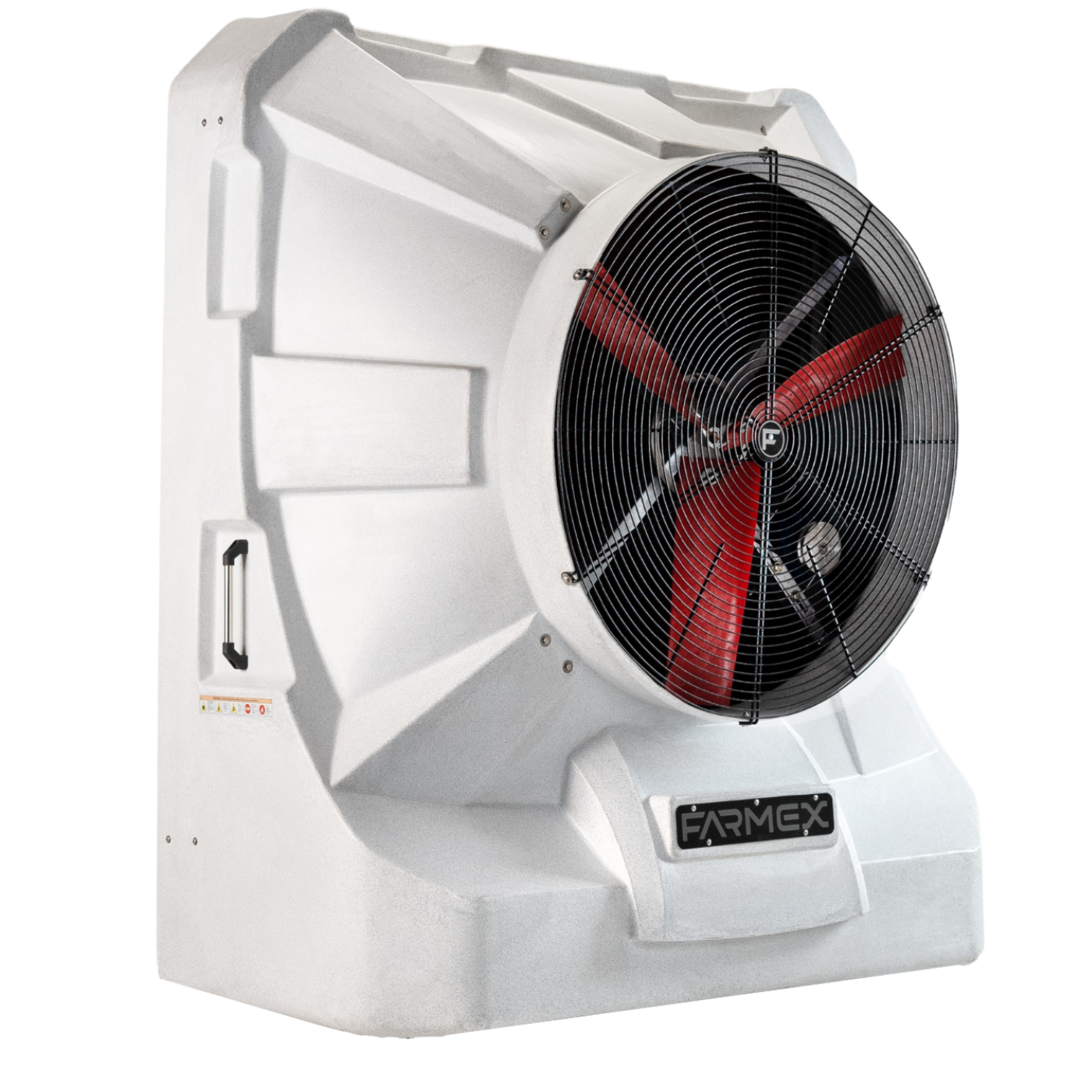

Key Components of the Cooler
Key Components of the Cooler
1- Drain Valve Used to empty the water tank when needed.2- Water Distribution Valve Must remain open during operation to allow water flow into the distribution pipes.Note: To drain water, close the distribution valve and open the drain valve.3-Emergency Water Inlet Used for manual water filling if necessary.4- Magnet Filter Contains a filter and magnet toprevent metal debris and particles from entering the pipes.5-Cooler Wheels The front wheels have locks to prevent movement when the cooler is running.6- Hose and Coupling Attach the coupling to the back of the cooler (float valve, bottom right) and connect the other end to a water supply.
| Features | ECO 700 | PROPLUS 700 | OPTIMA 700 |
|---|---|---|---|
| Optimal Cooling Area | 700 m² | 700 m² | 700 m² |
| Airflow | 48,000 m³/h | 48,000 m³/h | 48,000 m³/h |
| Air Throw Distance | 25 m | 25 m | 25 m |
| Noise Level | 80 dB at max speed | 70 dB at max speed | 60 dB at max speed |
| Fan Speed | Fixed | Variable | Variable |
| Fan Diameter | 130 cm | 130 cm | 130 cm |
| Cooling Pad Type | Economic 15 cm | Industrial 15 cm | Industrial 15 cm |
| Water Tank Capacity | 400 liters | 400 liters | 400 liters |
| Power Consumption | 3 A/3-phase | 6 A/single-phase | 4.5 /single-phase |
| Input Voltage | 380V (3-phase) | 210-230V (single-phase) | 210-230V (single-phase) |
| Motor Specification | 1.5 kW = 2HP | 1.5 kW = 2HP | 1.1 kW= 1.5HP |
| Power Transmission | Belt & Pulley | Belt & Pulley | Direct Drive |
| Dimensions (HxWxD) | 230×200×100 cm | 250×200×100 cm | 250×200×100 cm |
| Weight | 150 kg | 170 kg | 170 kg |
| Smart Features | Basic | Full smart control | Full smart control |
| Use Case | Large industrial halls | Workshops, Industrial | Workshops, Industrial, Open spaces |
| Water Pump | 400W economic | 200W Pentax | 200W Pentax |
| Portability | Not portable | Portable | Portable |
| Body Material | Polymer (weatherproof) | Polymer with lifetime warranty | Polymer with lifetime warranty |
